G4R25L20P2/4-45
Data
| Product number | G4R25L20P2/4-45 |
|---|---|
| Channel number | 4ch. |
| Lens position | middle |
| Lens spacing | 250μm |
| Lens length | 2/4P(1/4 pitch length available) |
| Lens diameter |
200μm NA=0.2 |

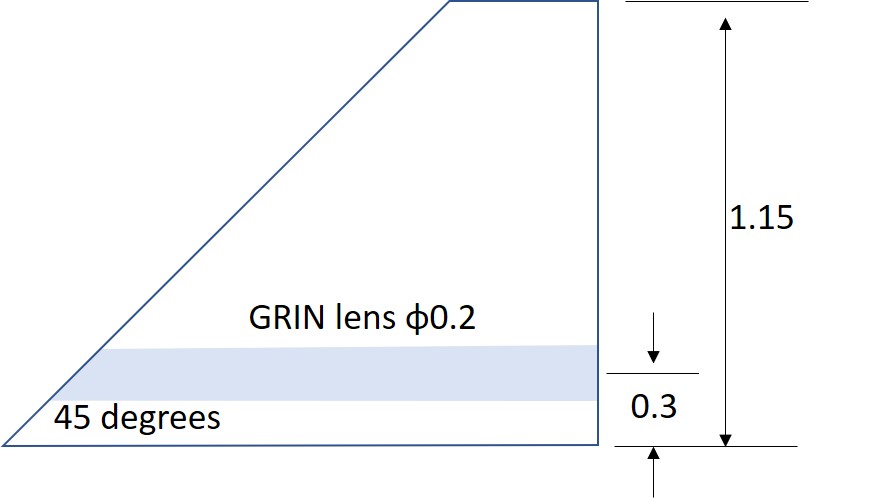

| End face angle | 45 degrees |
